- Actuator Style: Single Vane
- Maximum Output Torque: 22.5 N-m
- Rotation Angle: 180 Degrees
- Bore Diameter: 63 mm
- Maximum Operating Pressure: 145 psi
- Shaft Diameter: 14.9 mm
Specifications
| Part Number | CRB1BW63-180S |
| Brand | SMC |
| Item | Rotary Actuator |
| Actuator Style | Single Vane |
| Maximum Output Torque | 22.5 N-m |
| Rotation Angle | 180 Degrees |
| Bore Diameter | 63 mm |
| Maximum Operating Pressure | 145 psi |
| Shaft Diameter | 14.9 mm |
| Shaft Length | 21 mm |
| Inlet Size | 1/8 in |
| Air Inlet Type | BSPT |
| Cushion Type | Rubber Cushion |
| Magnetic | Piston Non-Magnetic Piston |
| Weight | 1.33 kg |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Pressure | 21.76 psi |
| Minimum Operating Temperature | 41 Degrees F |
| Standards | RoHS Compliant |
| For Fluid Type | Air |
| UPC | 190735635735 |
Description

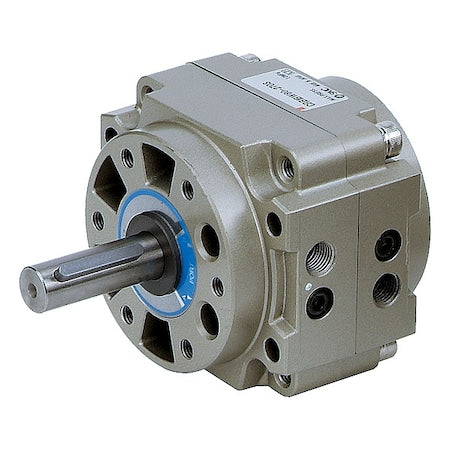

The SMC CRB1BW63-180S is a single vane rotary actuator with a 63 mm bore diameter and a rotation angle of 180 degrees. It provides a maximum output torque of 22.5 N-m and operates with air at pressures from 21.76 psi to 145 psi. This RoHS compliant unit has a 14.9 mm shaft diameter, a 1/8 in BSPT air inlet, and rubber cushioning.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
