- Current Rating: 100 A
- Housing Color: Red
- IP Rating: IP67
- Number of Poles: 3
- Number of Wires: 4
- Phase: Three
Specifications
| Part Number | BRY4100P7W |
| Brand | Bryant |
| Item | Pin and Sleeve Plug |
| Current Rating | 100 A |
| Housing Color | Red |
| IP Rating | IP67 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Voltage Rating | 480V AC |
| Wire Connection Type Screw | Terminals |
| Cap Type | No Cap or Cover |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 1.68 in |
| For Minimum Cable Diameter | 0.9 in |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Material | Polybutylene Terephthalate |
| Maximum Wire Size | 1/0 AWG |
| Minimum Wire Size | 3 AWG |
| NEMA Enclosure Rating | Not Rated |
| UPC | 078477838938 |
Description

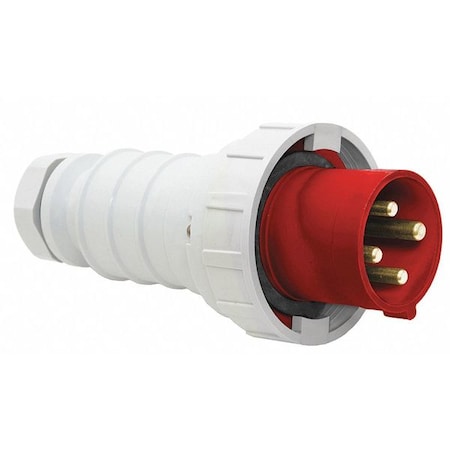

The Bryant BRY4100P7W is a pin and sleeve plug rated for 100 A and 480V AC in three-phase systems. It has 3 poles, 4 wires, IEC-style grounding, and screw terminals that accept wire sizes from 3 AWG to 1/0 AWG. The red housing is made of polybutylene terephthalate with an IP67 rating and a straight connection orientation.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
