- Voltage: 120 V AC
- Valve Type: Integrated Solenoid
- Includes Adjustable Mounting: Flange
- Plates: Assorted Heads And Static
- Low: Fire Baffle
- Overall Height: 10 1/2 in
Specifications
| Part Number | BR100GU |
| Brand | RW Beckett |
| Item | Product Type High-Efficiency Oil Burner |
| Voltage | 120 V AC |
| Valve Type | Integrated Solenoid |
| Includes Adjustable Mounting | Flange |
| Plates | Assorted Heads And Static |
| Low | Fire Baffle |
| Overall Height | 10 1/2 in |
| Overall Length | 6 1/2 in |
| Overall Width | 12 1/2 in |
| Pump Type | Single Stage |
| Amperage | 5.8 A |
| Tube | Burner Type Without Nozzle or Air |
| Ignition Type | Electronic |
| Model Number | BR100GU |
| Motor Speed | 3,450 RPM |
| Motor Type | Manual Reset Overload Protection |
| NEMA | 48 M-flange |
| Nozzle Thread Size | 9/16-24 |
Description

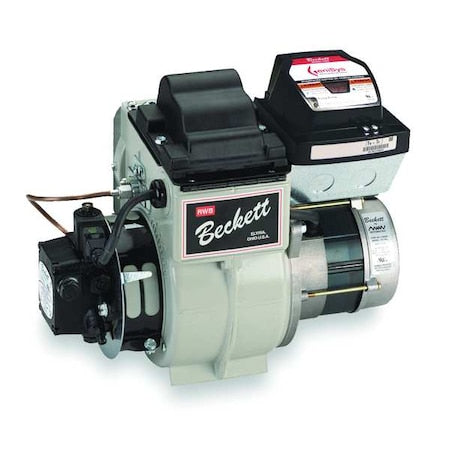

The RW Beckett BR100GU is a high-efficiency oil burner operating at 120 V AC with a 5.8 A draw. It features an integrated solenoid valve, electronic ignition, a single-stage pump, and a 3,450 RPM motor with manual reset overload protection. The unit includes an adjustable mounting flange, assorted heads and static plates, and a low fire baffle, measuring 10 1/2 in high, 6 1/2 in long, and 12 1/2 in wide.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
