- Adjustment Method: Dip Switch
- Base Shape: Octal
- Coil Voltage: 240V AC
- Contact Form: DPDT
- Contact Rating (AC): 10 A @ 120/240V
- Contact Rating (DC): 10 A @ 30V
Specifications
| Part Number | 9050JCK70V24 |
| Brand | Schneider Electric |
| Item | Multi-Function Time Delay Relay |
| Adjustment Method | Dip Switch |
| Base Shape | Octal |
| Coil Voltage | 240V AC |
| Contact Form | DPDT |
| Contact Rating (AC) | 10 A @ 120/240V |
| Contact Rating (DC) | 10 A @ 30V |
| Current Rating | 10 A |
| Number of Delay Functions | 9 |
| Delay Function | Interval, Off Delay, On Delay, On/Off Delay |
| One | Shot |
| One | Shot (Falling Edge) |
| Delay | Triggered On |
| Electrical Connection | Socket |
| Flat Pin Width | Not Applicable |
| Input Voltage | 240V AC |
| Minimum Time Setting | 0.5 sec |
| Features | Repeat Cycle, Watchdog |
| UPC | 785901132707 |
Description

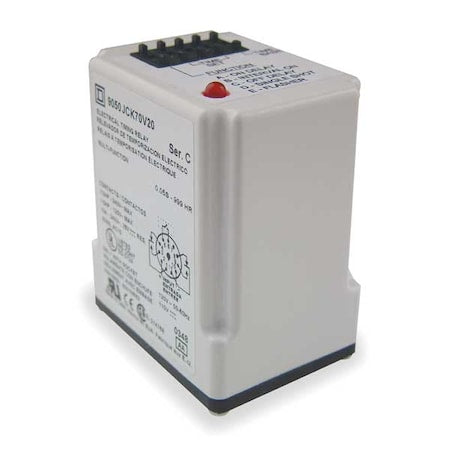

The Schneider Electric 9050JCK70V24 is a multi-function time delay relay with an octal base shape and DPDT contacts. It operates on a 240V AC coil voltage and offers nine delay functions, including interval, on delay, off delay, on/off delay, one shot, one shot falling edge, delay triggered on, repeat cycle, and watchdog. The relay has a current rating of 10 A, a minimum time setting of 0.5 seconds, and uses dip switch adjustment with socket electrical connection.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
