- mm: 30
- Action: Momentary
- Round: Extended Guarded Button Type of Operator
- Head Material: Metal
- Contact Form: SPDT
- Bezel: Chrome Plated Zinc Die Cast
Specifications
| Part Number | 9001K3L38LRRH13 |
| Brand | Schneider Electric |
| Item | Illuminated Push Button |
| mm | 30 |
| Action | Momentary |
| Round | Extended Guarded Button Type of Operator |
| Head Material | Metal |
| Contact Form | SPDT |
| Bezel | Chrome Plated Zinc Die Cast |
| Color | Red |
| Contact Rating | 10A @ 600V AC |
| NEMA Contact Rating Designation | A600/Q600 |
| Number of Operators | 1 |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| IP Rating | IP66 |
| Legend | Not Applicable |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1 |
| EN/IEC | 60947-5-4 |
| JIS | C4520 |
| JIS | C852 |
| UL | 508 |
| Features | REACH, RoHS, WEEE |
| UPC | 785901747178 |
Description

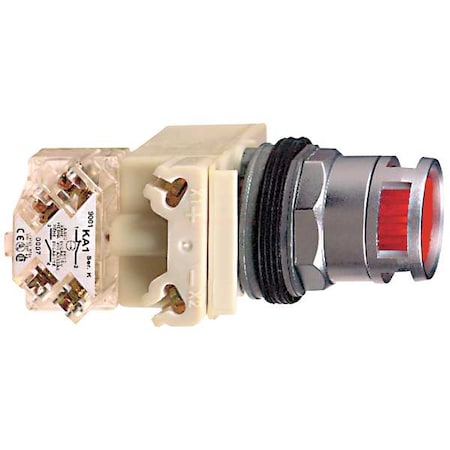

The Schneider Electric 9001K3L38LRRH13 is a 30 mm illuminated push button with a red, round extended guarded metal operator and a chrome plated zinc die cast bezel. It provides momentary action with an SPDT contact form rated 10A at 600V AC. This device carries NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13, along with an IP66 rating.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
