- Output: Power @ Maximum Speed 5 hp
- Maximum Torque: 132 in-lb
- No Load Speed: 2,500 RPM
- Maximum Flow Rate: 175 cfm
- Shaft Diameter: 7/8 in
- Shaft Length: 2 1/8 in
Specifications
| Part Number | 8AM-NRV-32A |
| Brand | Gast |
| Item | Air Motor |
| Output | Power @ Maximum Speed 5 hp |
| Maximum Torque | 132 in-lb |
| No Load Speed | 2,500 RPM |
| Maximum Flow Rate | 175 cfm |
| Shaft Diameter | 7/8 in |
| Shaft Length | 2 1/8 in |
| Mount Type | Face |
| Inlet Size | 1/2 in |
| Air Inlet Type | NPT |
| Rotation | CW/CCW |
| Housing Material Cast | Iron |
| Shaft Material Grade | Not Applicable |
| Bearing Protection | Not Applicable |
| Maximum Operating Pressure | 100 psi |
| Includes | Muffler |
| Keyway Width | 1/8 in |
| Weight | 28 lb |
| Housing Material Grade | G2500 |
| Housing Material Finish | Painted |
Description

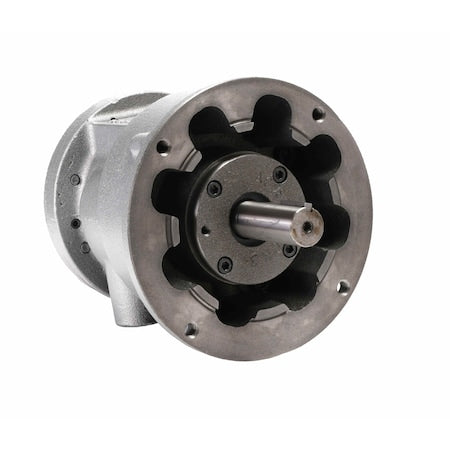

The Gast 8AM-NRV-32A is an air motor with a power output of 5 hp at maximum speed. It has a maximum torque of 132 in-lb, a no load speed of 2,500 RPM, and a maximum flow rate of 175 cfm. The cast iron housing has a painted finish, the shaft diameter is 7/8 in, and the unit includes a muffler.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
