- Current Rating: 20 A
- Contact Form: 4NO
- Coil Voltage: 110/120V AC
- Contact Rating (AC): 20 A @ 600V
- Relay Style: NEMA
- Electrical Connection Screw: Clamp
Specifications
| Part Number | 8501XMO40V02 |
| Brand | Square D |
| Item | NEMA Control Relay |
| Current Rating | 20 A |
| Contact Form | 4NO |
| Coil Voltage | 110/120V AC |
| Contact Rating (AC) | 20 A @ 600V |
| Relay Style | NEMA |
| Electrical Connection Screw | Clamp |
| Mounting Style | Surface |
| Power Consumption | 23 VA |
| Compatible with Series | 8501 Type X Latching Control Relays |
| Maximum Operating Temperature | 160 Degrees F |
| Frequency | 50/60 Hz |
| Body Depth | 3.95 in |
| Body Height | 3.5 in |
| Body Width | 2.23 in |
| Contact Material Silver | Cadmium Oxide |
| Input Voltage | 110/120V AC |
| Lead Size | 18 AWG |
| UPC | 785901743446 |
Description

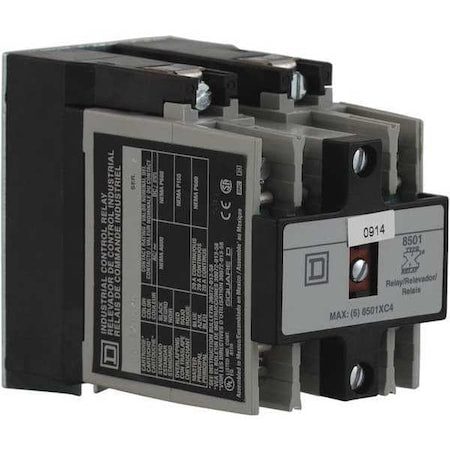

The Square D 8501XMO40V02 is a NEMA control relay with a 4NO contact form and a 20 A current rating. It has a 110/120V AC coil voltage, a contact rating of 20 A @ 600V, and screw clamp electrical connections. The relay features surface mounting, 23 VA power consumption, and a maximum operating temperature of 160 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
