- Overall Depth: 1.6 in
- Material: Carbon Steel
- Bearing Type: Fixed
- For Use With: Precision Ball Screw
- Nominal: Bore Diameter 0.631 in
- Thru Bore Diameter: 0.406 in
Specifications
| Part Number | 7824154 |
| Brand | Thomson |
| Item | Ball Nut End Block |
| Overall Depth | 1.6 in |
| Material | Carbon Steel |
| Bearing Type | Fixed |
| For Use With | Precision Ball Screw |
| Nominal | Bore Diameter 0.631 in |
| Thru Bore Diameter | 0.406 in |
| System of Measurement | Inch |
| Thread Size | 15/32 In.-32 |
| Mounting Hole Diameter | 0.281 in |
| Overall Height | 1.88 in |
| Overall Width | 3 in |
| Length through Bore | 1.26 in |
| Mounting | Surface to Shaft Center 1 in |
| Compatible Grainger Part Number | 2LGE4 |
| Static Load Capacity | 630 lbf |
| Axial Load Capacity | 1,600 lbf |
| Features | 2LGF2, 2LGG2 |
Description

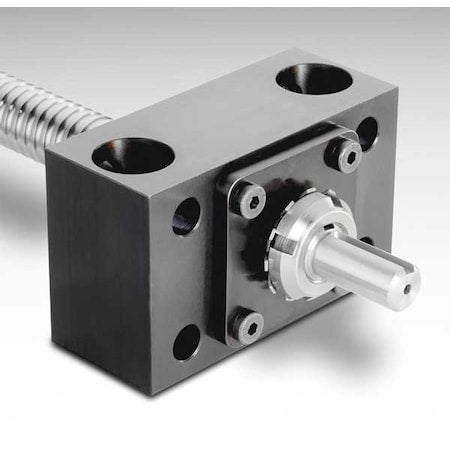

The Thomson 7824154 is a fixed ball nut end block made of carbon steel for use with a precision ball screw. It has a nominal bore diameter of 0.631 in, a thru bore diameter of 0.406 in, and a thread size of 15/32 In.-32. Overall dimensions are 3 in wide, 1.88 in high, and 1.6 in deep, with a static load capacity of 630 lbf and an axial load capacity of 1,600 lbf.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
