- Blade Dia.: 24 in
- Speeds: 1
- Voltage: 115/230V AC
- Phase: 1
- CFM High: 5220
- Air Velocity @ 20 Ft.: 600 fpm
Specifications
| Part Number | 70831 |
| Brand | DAYTON |
| Item | Mounted Fan |
| Blade Dia. | 24 in |
| Speeds | 1 |
| Voltage | 115/230V AC |
| Phase | 1 |
| CFM High | 5220 |
| Air Velocity @ 20 Ft. | 600 fpm |
| Motor HP | 1/4 hp |
| Motor RPM | 1075 |
| Operating Amps | 3.28/1.68 |
| Fan Mounting Location | Wall |
| Fan Accessory Style | Washdown |
| Fan RPM | 1075 |
| Sound Level | 77 dBA |
| Max. Ambient Temp. | 105 Degrees F |
| Hz | 60 Hz |
| Watts | 295/280 W |
| Motor Type | Permanent Split Capacitor |
| Drive Type | Direct Drive |
| Outside Dia. | 33 In. |
| Height | 33 in |
| Width | 33 in |
| Max. Depth | 15 In. |
| Features | Stationary, Non-Oscillating |
| UPC | 190735222928 |
Description

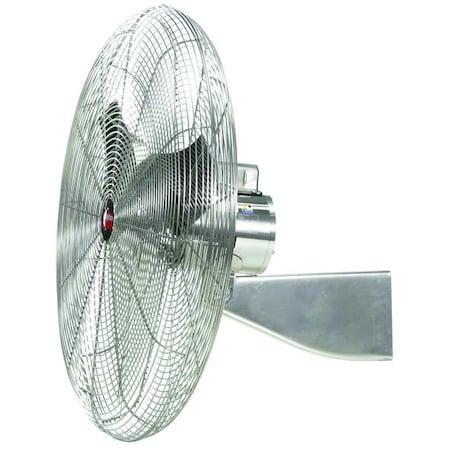

DAYTON 70831 is a wall-mount washdown fan with a 24 in blade diameter and a non-oscillating, stationary design. It operates on 115/230V AC single-phase power and delivers 5,220 cfm at high speed with an air velocity of 600 fpm at 20 ft. The direct-drive permanent split capacitor motor runs at 1,075 rpm, draws 3.28/1.68 operating amps, and produces a sound level of 77 dBA.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
