- Reservoir Capacity: 92.4 cu in
- Air: Intake Pressure - Maximum 175 psi
- Air Intake Connection Size: 1/4 in
- Operating Pressure - Maximum: 10,000 psi
- Displacement @ 100 psi: Not Applicable
- Displacement @ 5000 psi: 20 cu in/min
Specifications
| Part Number | 5ML66 |
| Brand | Westward |
| Item | Hydraulic Pump |
| Reservoir Capacity | 92.4 cu in |
| Air | Intake Pressure - Maximum 175 psi |
| Air Intake Connection Size | 1/4 in |
| Operating Pressure - Maximum | 10,000 psi |
| Displacement @ 100 psi | Not Applicable |
| Displacement @ 5000 psi | 20 cu in/min |
| Displacement @ 10,000 PSI | 11 cu in/min |
| Sound | Level - Maximum 85 dBA |
| Control Valve Type | Not Applicable |
| Actuation Type | Foot |
| Air | Consumption - Maximum 7.8 scfm |
| Air Intake Connection Type | NPT |
| Control Valve Function | Not Applicable |
| UPC | 190735861103 |
Description

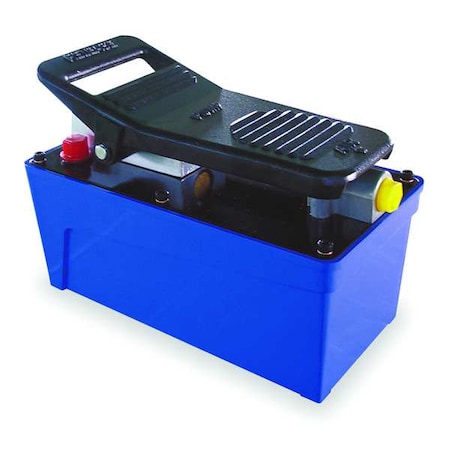

The Westward 5ML66 is a foot-actuated hydraulic pump with a 92.4 cu in reservoir capacity. It has a maximum air intake pressure of 175 psi through a 1/4 in NPT connection and a maximum operating pressure of 10,000 psi. Displacement is 20 cu in/min at 5000 psi and 11 cu in/min at 10,000 psi, with a maximum sound level of 85 dBA and maximum air consumption of 7.8 scfm.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
