- Not Applicable: Phase
- Motor Design: Permanent Magnet
- HP: 1/6
- Nameplate RPM: 1,800 RPM
- Voltage: 90V DC
- Full Load Amps: 1.72 A
Specifications
| Part Number | 4Z528 |
| Brand | DAYTON |
| Item | DC Permanent Magnet Motor |
| Not Applicable | Phase |
| Motor Design | Permanent Magnet |
| HP | 1/6 |
| Nameplate RPM | 1,800 RPM |
| Voltage | 90V DC |
| Full Load Amps | 1.72 A |
| Frame | Non-Standard |
| Full Load Torque | 5.6 in-lb |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Duty Cycle | Continuous |
| Motor Enclosure Design Totally Enclosed | Nonventilated |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Universal |
| Features | Replacement For 4Z528 |
| UPC | 190735340844 |
Description

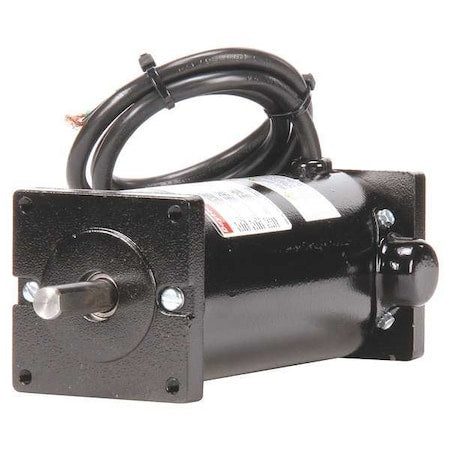

DAYTON 4Z528 is a DC permanent magnet motor with a totally enclosed nonventilated design. It provides 1/6 HP at 1,800 RPM on 90V DC, drawing 1.72 full load amps with 5.6 in-lb of full load torque. The motor has a non-standard frame, face/base mounting, universal mounting position, Class F insulation, a 40°C maximum ambient temperature, and continuous duty.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
