- Single: Phase
- Motor Design: Split-Phase
- HP: 1/3 hp
- Nameplate RPM: 1,725 RPM
- No. of Speeds: 1
- Voltage: 115/208-230V AC
Specifications
| Part Number | 4K252 |
| Brand | DAYTON |
| Item | Fan and Blower Motor |
| Single | Phase |
| Motor Design | Split-Phase |
| HP | 1/3 hp |
| Nameplate RPM | 1,725 RPM |
| No. of Speeds | 1 |
| Voltage | 115/208-230V AC |
| Full Load Amps | 6.6/3.1-3.3 A |
| Frame | 48Y |
| Hz | 60 Hz |
| Motor Service Factor | 1.35 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Duty Cycle | Continuous |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design Open | Drip Proof |
| Motor Mounting Type | Cradle Base |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| UPC | 190735327500 |
Description

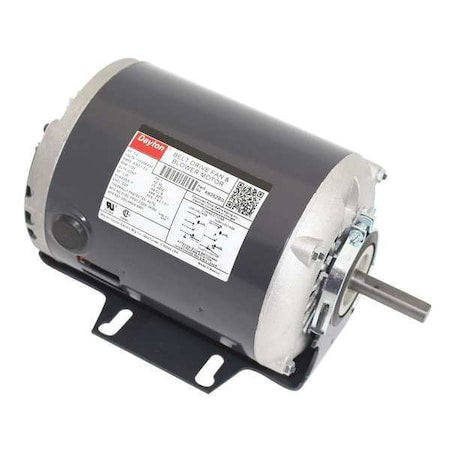

The DAYTON 4K252 is a split-phase belt drive fan and blower motor rated at 1/3 hp with a nameplate speed of 1,725 RPM. It operates on 115/208-230V AC, 60 Hz, and has a 48Y frame with a steel cradle base for all-angle mounting. This single-speed motor features automatic thermal protection, a 1.35 service factor, Class B insulation, and a continuous duty cycle in an open drip-proof enclosure.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
