- Output Power @ Maximum Speed: 1.3 hp
- Maximum Torque: 640 in-lb
- No Load Speed: 200 RPM
- Maximum Flow Rate: 60 cfm
- Shaft Diameter: 1 in
- Shaft Length: 2 5/8 in
Specifications
| Part Number | 4AM-RV-75-GR25 |
| Brand | Gast |
| Item | Air Motor |
| Output Power @ Maximum Speed | 1.3 hp |
| Maximum Torque | 640 in-lb |
| No Load Speed | 200 RPM |
| Maximum Flow Rate | 60 cfm |
| Shaft Diameter | 1 in |
| Shaft Length | 2 5/8 in |
| Mount Type | Face, Foot |
| Inlet Size | 1/4 in |
| Air Inlet Type | NPT |
| Rotation | CW/CCW |
| Housing Material Cast | Iron |
| Gear Ratio | 15:1 |
| Air Consumption | 60 cfm |
| Housing Material Finish | Painted |
| Air Inlet | Center to Center Distance 2 1/2 in |
| Inlet Gender | Female |
| Output | Power @ 25 Percent Maximum Speed 0.45 hp |
| Weight | 28 lb |
| Series | 4AM |
Description

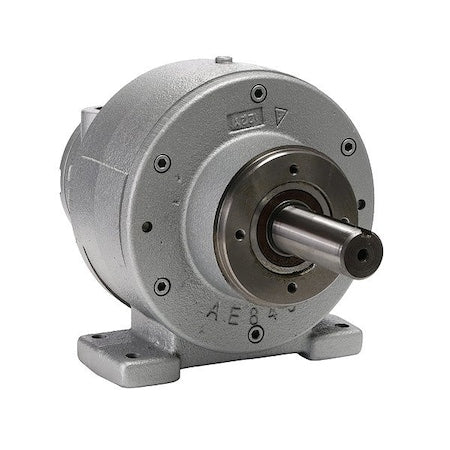

The Gast 4AM-RV-75-GR25 is an air motor with a 15:1 gear ratio. It provides an output power of 1.3 hp at maximum speed, a maximum torque of 640 in-lb, and a no load speed of 200 RPM. The unit has a cast iron housing with a painted finish, a 1 in shaft diameter, and a 1/4 in NPT female air inlet.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
