- Single: Phase
- Motor Design: Permanent Split Capacitor
- HP: 1/2
- Nameplate RPM: 1,075
- No. of Speeds: 2
- Voltage: 115V AC
Specifications
| Part Number | 3M505 |
| Brand | DAYTON |
| Item | Pedestal Fan Motor |
| Single | Phase |
| Motor Design | Permanent Split Capacitor |
| HP | 1/2 |
| Nameplate RPM | 1,075 |
| No. of Speeds | 2 |
| Voltage | 115V AC |
| Full Load Amps | 7.2 A |
| Frame | 48YZ |
| Hz | 60 Hz |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Duty Cycle | Continuous |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design Totally Enclosed | Air-Over |
| Motor Mounting Position | Horizontal |
| Shaft Length | 2 1/2 in |
| Shaft Dia. | 5/8 in |
| UPC | 190735291863 |
Description

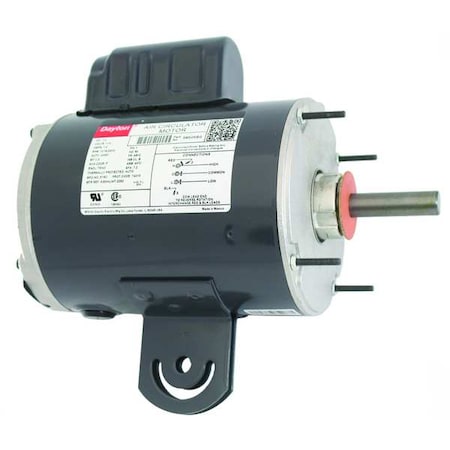

The DAYTON 3M505 is a single-phase pedestal fan motor with a permanent split capacitor design. It provides 1/2 HP at 1,075 nameplate RPM and operates on 115V AC, drawing 7.2 full load amps. This two-speed motor has a 48YZ frame, a totally enclosed air-over enclosure, and a 5/8-inch shaft diameter.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
