- Open: Drip Proof Motor Enclosure Design
- HP: 1 1/2
- Nameplate RPM: 3465
- Frame: 143/5TC
- Voltage: 230/460V AC
- Hz: 60 Hz
Specifications
| Part Number | 36VF46 |
| Brand | DAYTON |
| Item | General Purpose Motor |
| Open | Drip Proof Motor Enclosure Design |
| HP | 1 1/2 |
| Nameplate RPM | 3465 |
| Frame | 143/5TC |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Three | Phase |
| Full Load Amps | 3.7/1.8 A |
| Motor Mounting Type | C-Face |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Ball Motor | Bearings |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 84 Percent |
| Duty | Continuous |
| Includes | Conduit Box |
| Features | Three-Phase, 3001-3600, CE, CSA, UL |
| UPC | 190735275788 |
Description

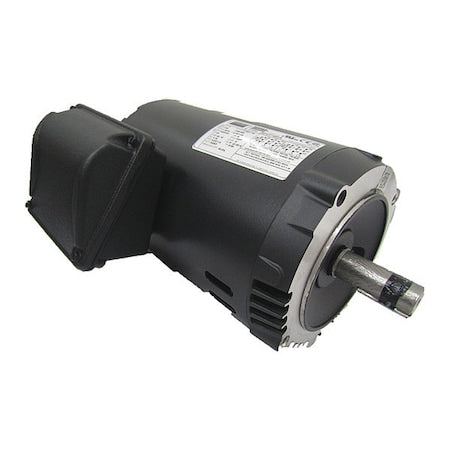

The DAYTON 36VF46 is a three-phase general purpose motor with 1 1/2 HP and a nameplate speed of 3465 RPM. It operates at 230/460V AC, 60 Hz, with full load amps of 3.7/1.8 A and a 143/5TC frame. This motor has an open drip proof enclosure, C-face mounting, steel frame, ball bearings, Class F insulation, a 1.15 service factor, and continuous duty.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
