- Discharge Connection Size: 3/4 in
- Discharge Connection Type: NPT
- Horsepower (Maximum): 1/2 hp
- Housing Material Cast: Iron
- Intake Connection Size: 3/4 in
- Intake Connection Type: NPT
Specifications
| Part Number | 34401 |
| Brand | Moyno |
| Item | Progressive Cavity Pump |
| Discharge Connection Size | 3/4 in |
| Discharge Connection Type | NPT |
| Horsepower (Maximum) | 1/2 hp |
| Housing Material Cast | Iron |
| Intake Connection Size | 3/4 in |
| Intake Connection Type | NPT |
| Media Temperature (Maximum) | 160 Degrees F |
| Media Temperature (Minimum) | 10 Degrees F |
| Operating Pressure (Maximum) | 40 psi |
| Pump Operation Type | Non-Motorized |
| Material Stainless Steel | Rotor |
| Seal Material | Carbon, Ceramic |
| Solid Diameter (Maximum) | 8 mm |
| Stator Material | Buna-N |
Description

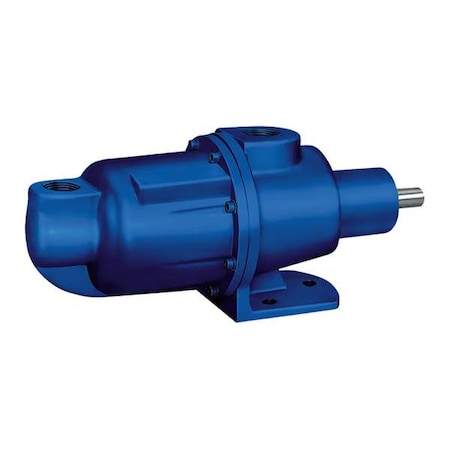

The Moyno 34401 is a progressive cavity pump with a cast iron housing and a stainless steel rotor. It has 3/4 in NPT intake and discharge connections, a maximum operating pressure of 40 psi, and a flow rate of 14.8 gpm. The pump is non-motorized, has a maximum horsepower of 1/2 hp, and is rated for media temperatures from 10 to 160 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
