- Movement Type: Pivot, Swivel
- Material: Alloy Steel
- Mount Type: Screw-On
- Working Load Limit: 15,000 lb
- Thread Size: 1 1/4 In.-7
- Operation: Lifting, Pulling
Specifications
| Part Number | 33401 |
| Brand | ADB Hoist Rings |
| Item | Hoist Ring |
| Movement Type | Pivot, Swivel |
| Material | Alloy Steel |
| Mount Type | Screw-On |
| Working Load Limit | 15,000 lb |
| Thread Size | 1 1/4 In.-7 |
| Operation | Lifting, Pulling |
| Pivot Angle | 180 Degrees |
| Swivel Angle | 360 Degrees |
| Usable Thread Length | 2 5/8 in |
| Bail Inside Length | 3 3/4 in |
| Bail Inside Width | 3 3/4 in |
| Bail Thickness | 1 1/4 in |
| Overall Length | 6 3/4 in |
| Overall Width | 6 3/4 in |
| Hardware Included | Removable Bolt |
| Minimum Installation Torque | 470 ft-lb |
| Finish | Black Oxide |
| UPC | 043927334018 |
Description

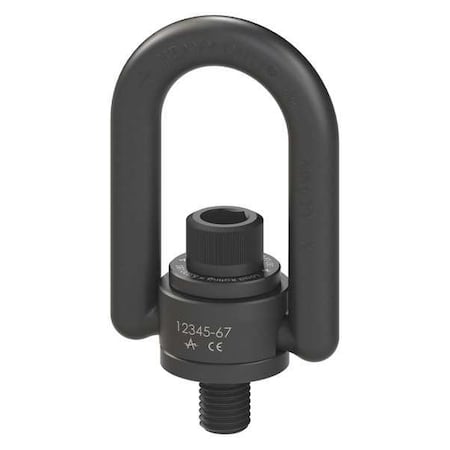

The ADB Hoist Rings 33401 is a heavy duty hoist ring with a working load limit of 15,000 lb. Made of alloy steel with a black oxide finish, it has a screw-on mount with a 1 1/4 In.-7 thread size and 2 5/8 in usable thread length. This ring provides 180 degrees of pivot and 360 degrees of swivel for lifting and pulling operations.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
