- Adjustment Method: Dial
- Contact Form: DPDT
- Contact Rating (AC): 10 A @ 125/250V
- Contact Rating (DC): 10 A @ 30V DC
- Current Rating: 10 A
- Number of Delay Functions: 2
Specifications
| Part Number | 328E200F10XX |
| Brand | ATC Diversified Electronics |
| Item | Time-Delay Relay |
| Adjustment Method | Dial |
| Contact Form | DPDT |
| Contact Rating (AC) | 10 A @ 125/250V |
| Contact Rating (DC) | 10 A @ 30V DC |
| Current Rating | 10 A |
| Number of Delay Functions | 2 |
| Delay Function | Off Delay, On Delay |
| Electrical Connection Screw | Terminal |
| Input Voltage | 24V AC to 240V AC, 24V DC |
| Minimum Time Setting | 1 sec |
| Maximum Time Setting | 10 hr |
| Number of Pins | 11 |
| Mounting Style | Plug-In |
| Adjustment | Interface Digital |
| Body Depth | 5.44 in |
| Body Height | 3.78 in |
| Body Width | 1.89 in |
Description

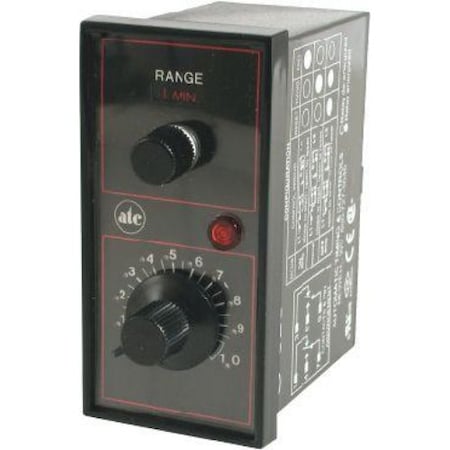

The ATC Diversified Electronics 328E200F10XX is a time-delay relay with off delay and on delay functions. It has a DPDT contact form rated for 10 A at 125/250V AC and 10 A at 30V DC. The relay features dial adjustment, screw terminals, 11 pins, and plug-in mounting, with an input voltage of 24V AC to 240V AC or 24V DC and a time setting range from 1 second to 10 hours.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
