- Three: Phase
- Motor Design: Three-Phase
- HP: 1 hp
- Nameplate RPM: 850 RPM
- No. of Speeds: 1
- Voltage: 208-230/460V AC
Specifications
| Part Number | 31TR64 |
| Brand | DAYTON |
| Item | Condenser Fan Motor |
| Three | Phase |
| Motor Design | Three-Phase |
| HP | 1 hp |
| Nameplate RPM | 850 RPM |
| No. of Speeds | 1 |
| Voltage | 208-230/460V AC |
| Full Load Amps | 4.8-4.8/2.4 A |
| Frame | 56Z |
| Hz | 60 Hz |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Duty Cycle | Continuous |
| Max. Ambient Temp. | 70 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design Open Air | Over |
| Motor Mounting Type | Belly Band |
| Inverter Rated | Inverter Rated |
| Inverter Rating | Inverter Rated |
| UPC | 190735255704 |
Description

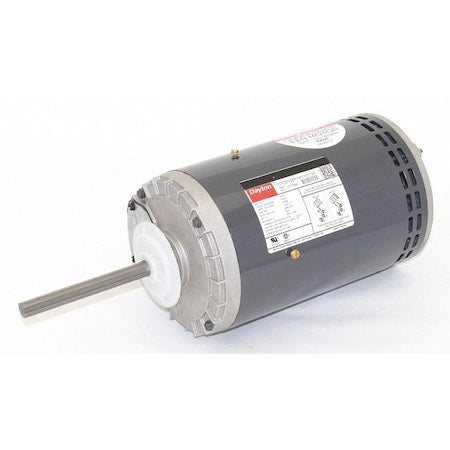

The DAYTON 31TR64 is a 1 hp condenser fan motor operating on three-phase power at 208-230/460V AC. It runs at 850 RPM with a single speed, has a 56Z frame, and is rated for continuous duty with a maximum ambient temperature of 70 degrees C. This motor features automatic thermal protection, a reversible CW/CCW shaft rotation, and a belly band mounting type.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
