- Blade Dia.: 24 in
- Speeds: 2
- Voltage: 120V AC
- Phase: 1
- CFM High: 5450
- CFM Low: 3800
Specifications
| Part Number | 2MA10 |
| Brand | DAYTON |
| Item | Light-Duty Industrial Fan |
| Blade Dia. | 24 in |
| Speeds | 2 |
| Voltage | 120V AC |
| Phase | 1 |
| CFM High | 5450 |
| CFM Low | 3800 |
| Air Velocity @ 20 Ft. | 590/300 fpm |
| Motor HP | 1/4 hp |
| Motor RPM | 1100/950 |
| Operating Amps | 2.9/2.0 |
| Fan Mounting Location | Ceiling, Wall |
| Fan Accessory Style | Standard |
| Fan RPM | 1100/950 |
| Sound Level | 74 dBA |
| Max. Ambient Temp. | 104 Degrees F |
| Hz | 60 Hz |
| Watts | 320/240 |
| Motor Type | Permanent Split Capacitor |
| Drive Type | Direct Drive |
| Outside Dia. | 27 In. |
| Height | 31 in |
| Features | Stationary, Non-Oscillating |
| UPC | 190735223239 |
Description

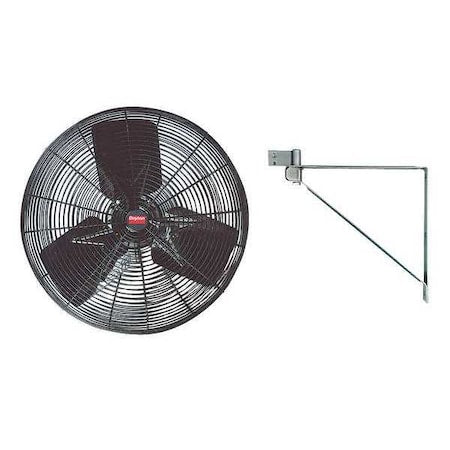

DAYTON 2MA10 is a light-duty industrial fan with a 24-inch blade diameter and a non-oscillating design for ceiling or wall mounting. It operates on 120V AC single-phase power and offers two speeds, delivering 3800 CFM on low and 5450 CFM on high. The direct-drive permanent split capacitor motor is rated at 1/4 hp with a sound level of 74 dBA and a maximum ambient temperature of 104 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
