- Motor Design: Permanent Magnet
- HP: 3/4
- Nameplate RPM: 1750
- Voltage: 90V DC
- Full Load Amps: 7.6 A
- Frame: 56C
Specifications
| Part Number | 2M169A |
| Brand | DAYTON |
| Item | DC Permanent Magnet Motor |
| Motor Design | Permanent Magnet |
| HP | 3/4 |
| Nameplate RPM | 1750 |
| Voltage | 90V DC |
| Full Load Amps | 7.6 A |
| Frame | 56C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design Totally Enclosed | Fan-Cooled |
| Motor Mounting Type | Face/Base |
| Removable Base | Yes |
| Shaft Dia. | 5/8 in |
| Motor | Bearings Ball |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Overall Length | 13 13/16 in |
| UPC | 190735223031 |
Description

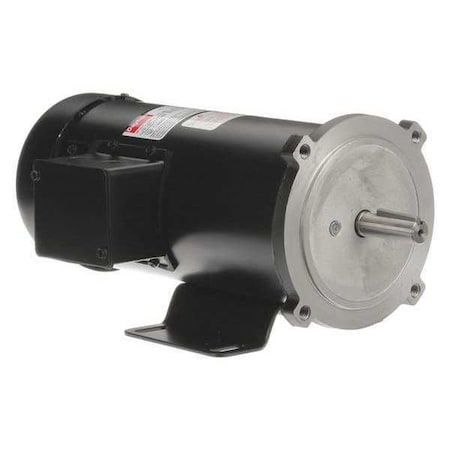

DAYTON 2M169A is a DC permanent magnet motor with a 56C frame and a face/base mounting type. It provides 3/4 HP at a nameplate speed of 1750 RPM, operating on 90V DC with 7.6 full load amps. The totally enclosed fan-cooled motor has a keyed shaft with a 5/8 in diameter, ball bearings, and a removable base.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
