- Ball Material: PVC
- Nominal Valve Size: 1 1/2 in
- Maximum Pressure - Operating: 230 psi
- Actuator Operation: 90 Degrees
- Seat Material: PTFE
- Seal Material: FKM
Specifications
| Part Number | 2905015 |
| Brand | Asahi |
| Item | Electrically Actuated Two-Way Ball Valve |
| Ball Material | PVC |
| Nominal Valve Size | 1 1/2 in |
| Maximum Pressure - Operating | 230 psi |
| Actuator Operation | 90 Degrees |
| Seat Material | PTFE |
| Seal Material | FKM |
| Voltage | 120V AC |
| Actuator Cycle Time - 90 Degrees | 5 sec |
| Valve Construction | Three-Piece |
| Actuator Features | Auxiliary Limit Switch, Manual Override, Position Indicator, Thermal Overload Protection |
| Connection Type - Side | 1 Socket |
| Body Material | PVC |
| Connection Type - Side | 2 Socket |
| Valve | Ways 2-Way |
Description

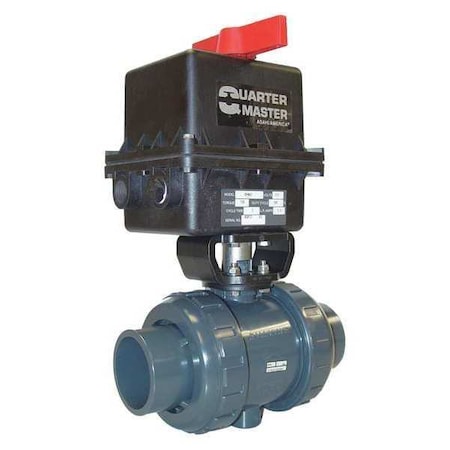

The Asahi 2905015 is an electrically actuated two-way ball valve with a nominal size of 1 1/2 in. It has a three-piece PVC body and ball, PTFE seat, FKM seal, and socket connections. The 120V AC actuator operates through 90 degrees in 5 seconds and includes a position indicator, manual override, auxiliary limit switch, and thermal overload protection. Maximum operating pressure is 230 psi.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
