- Double: Acting
- Bore Dia.: 2.5 in
- Stroke Length: 20 in
- Rod Dia.: 1 1/2 in
- Retracted Length: 28 in
- Extended Length: 48 in
Specifications
| Part Number | 288328 |
| Brand | Maxim |
| Item | Welded Hydraulic Cylinder |
| Double | Acting |
| Bore Dia. | 2.5 in |
| Stroke Length | 20 in |
| Rod Dia. | 1 1/2 in |
| Retracted Length | 28 in |
| Extended Length | 48 in |
| Port Size | #8 SAE |
| Max. Pressure | 3,000 psi |
| Temp. | Range -20 Degrees to 220 Degrees F |
| Material | Ductile Iron Piston |
| Precision | Honed Steel Tubes |
| Type | Polypak Rod Seal |
| High | Tensile Tie Rods |
| Black | Finish |
| Pin Dia. | 1 in |
Description

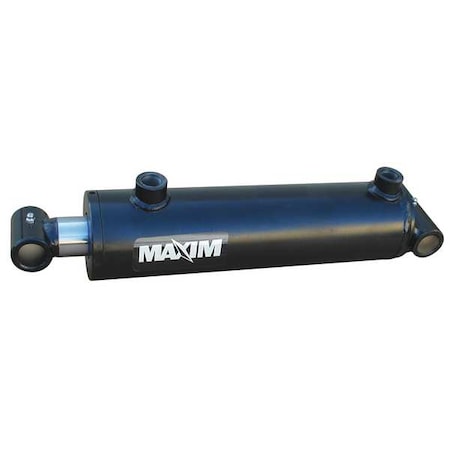

The Maxim 288328 is a double-acting welded hydraulic cylinder with a 2.5 in bore diameter and a 20 in stroke length. It has a rod diameter of 1 1/2 in, a retracted length of 28 in, and an extended length of 48 in. This cylinder includes a ductile iron piston, precision honed steel tubes, a polypak rod seal, high tensile tie rods, and a black finish.
