- single-cylinder piston air compressor with an articulated-piston design. It runs on: 12V DC power at a rated 1/4 hp output
- in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from: 0.7 CFM at 100 psi up to 1.7 CFM at 0 psi
- RPM: and a maximum continuous pressure of 100 psi. It is rated at a maximum speed of 1,800
- A: a full-load current of 26
- and a measured sound level of 70 dBA (@: 100 psi). The operating temperature range is 32-104°F. Construction includes a cast iron cylinder
- and stainless steel valves. The motor is totally enclosed. Air connections are: 1/4 in NPT inlet and outlet. Overall dimensions are 11.562 x 5.812 x 5.812 in (L x W x H). It ships without a power cord. Country of origin: United States.
Specifications
| Part Number | 270024 |
| Brand | Thomas |
| Item | The Thomas 270024 is an oil-free |
| single-cylinder piston air compressor with an articulated-piston design. It runs on | 12V DC power at a rated 1/4 hp output |
| in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from | 0.7 CFM at 100 psi up to 1.7 CFM at 0 psi |
| RPM | and a maximum continuous pressure of 100 psi. It is rated at a maximum speed of 1,800 |
| A | a full-load current of 26 |
| and a measured sound level of 70 dBA (@ | 100 psi). The operating temperature range is 32-104°F. Construction includes a cast iron cylinder |
| and stainless steel valves. The motor is totally enclosed. Air connections are | 1/4 in NPT inlet and outlet. Overall dimensions are 11.562 x 5.812 x 5.812 in (L x W x H). It ships without a power cord. Country of origin: United States. |
| Features | a permanent-magnet DC motor |
Description

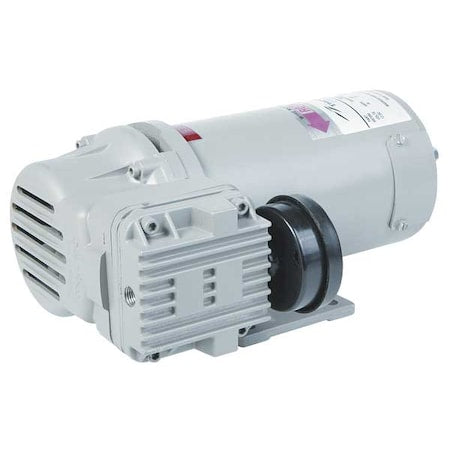

The Thomas 270024 is an oil-free, single-cylinder piston air compressor with an articulated-piston design. It runs on 12V DC power with a rated 1/4 hp output and provides free-air delivery from 0.7 CFM at 100 psi up to 1.7 CFM at 0 psi, with a maximum continuous pressure of 100 psi. This tankless unit has a cast iron cylinder, stainless steel valves, a totally enclosed permanent-magnet DC motor, and 1/4 in NPT inlet and outlet connections.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
