- in a tankless configuration. It provides a free-air delivery ranging from: 2.72 CFM at 20 psi up to 3.15 CFM at 0 psi
- psi: a maximum continuous pressure of 25
- and a: maximum vacuum of 27.6 in Hg. It is rated at a maximum speed of 1,750 RPM
- A: a full-load current of 4.7
- and a: measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder
- with: a high-torque start winding)
Specifications
| Part Number | 2688CE44 |
| Brand | Thomas |

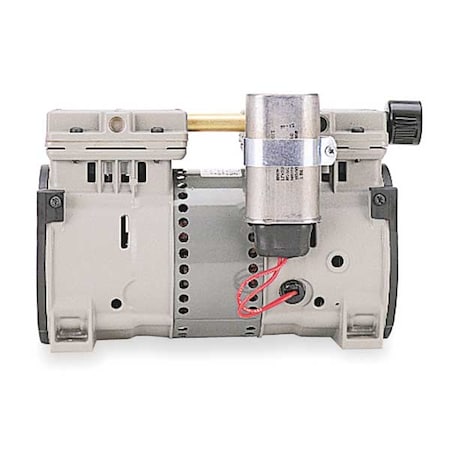

| Item | The Thomas 2688CE44 is a twin-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output |
| in a tankless configuration. It provides a free-air delivery ranging from | 2.72 CFM at 20 psi up to 3.15 CFM at 0 psi |
| psi | a maximum continuous pressure of 25 |
| and a | maximum vacuum of 27.6 in Hg. It is rated at a maximum speed of 1,750 RPM |
| A | a full-load current of 4.7 |
| and a | measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder |
| with | a high-torque start winding) |
| and corrosion-resistant sandwich valves in stainless steel. Air connections are | 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 6.75 x 7.1 in (L x W x H). Country of origin: United States. |
| Features | a shaded-pole motor (thermally protected |
Description
Thomas part number 2688CE44: Piston Air Compressor/Vacuum Pump, 1/3 HP.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
