- and exceeds the highest standards. These Cylinders are designed for demanding applications and are built to ensure Maximum reliabilityand performance. Painted black. Intended Use: Double-acting applications Piston: Ductile iron: ASTM A536 65-45-12 for excellent life Piston Lock Nut : Grade 8
- high tensile zinc-plated Gland: Ductile iron: ASTM A536 65-45-12 Tube: Precision honed steel Tube seal: Nitrile O-ring with Polytemp hytrel back-up Rod: High tensile ground & polished hard chrome plated rod Rod seal: Std PolyPak with B lip design (Polyurethane U-cup with Nitrile O-ring expander) Wiper: Polyurethane End Mounts: Cross-tubes Piston ID Seal: O-ring Piston OD seal: Hallite 755 piston seal with wear ring OD seal: Hallite 755 piston seal with wear ring 5 Bore
- Stroke: 30
- Dia.: 2.5 Rod
- Retracted: 41
- Extended: 71
Specifications
| Part Number | 216564 |
| Brand | Maxim |
| Item | This Maxim WT 3000 PSI welded cylinder is crosstube mounted |
| and exceeds the highest standards. These Cylinders are designed for demanding applications and are built to ensure Maximum reliabilityand performance. Painted black. Intended Use: Double-acting applications Piston: Ductile iron | ASTM A536 65-45-12 for excellent life Piston Lock Nut : Grade 8 |
| high tensile zinc-plated Gland: Ductile iron | ASTM A536 65-45-12 Tube: Precision honed steel Tube seal: Nitrile O-ring with Polytemp hytrel back-up Rod: High tensile ground & polished hard chrome plated rod Rod seal: Std PolyPak with B lip design (Polyurethane U-cup with Nitrile O-ring expander) Wiper: Polyurethane End Mounts: Cross-tubes Piston ID Seal: O-ring Piston OD seal: Hallite 755 piston seal with wear ring OD seal: Hallite 755 piston seal with wear ring 5 Bore |
| Stroke | 30 |
| Dia. | 2.5 Rod |
| Retracted | 41 |
| Extended | 71 |
| Column Load | 58900 |
| Port Size | 3/4Ó NPT |
| Dia. | 1.5 Pin |
Description

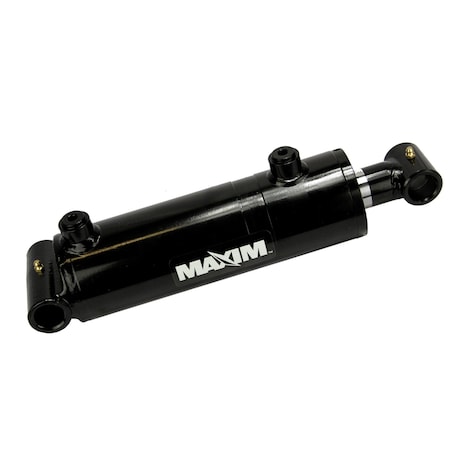

Maxim part number 216564: WT Welded Hydraulic Cylinder: 5 Bore x 30 Stroke - 2.5 Rod.
