- Open: Drip Proof Motor Enclosure Design
- HP: 7 1/2
- Nameplate RPM: 1765 rpm
- Frame: 213T
- Voltage: 200V AC
- Hz: 60 Hz
Specifications
| Part Number | 213TTDBD6039 |
| Brand | Marathon |
| Item | General Purpose Motor |
| Open | Drip Proof Motor Enclosure Design |
| HP | 7 1/2 |
| Nameplate RPM | 1765 rpm |
| Frame | 213T |
| Voltage | 200V AC |
| Hz | 60 Hz |
| Three | Phase |
| Full Load Amps | 23.0 A |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Ball Motor | Bearings |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 81.5 Percent |
| Duty | Continuous |
| CSA | (LR2025) |
| UL | (E49747) |
| Features | Three-Phase, 1701-1800 |
Description

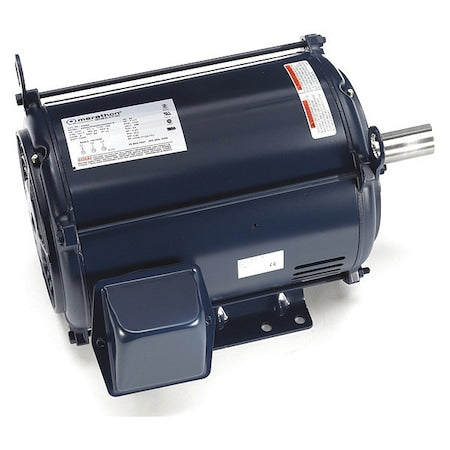

The Marathon 213TTDBD6039 is a three-phase general purpose motor with 7 1/2 HP, a 213T frame, and a nameplate speed of 1765 rpm. It operates at 200V AC, 60 Hz, with a full load amperage of 23.0 A and a service factor of 1.15. This motor features a drip proof enclosure, rigid base mounting, steel frame, ball bearings, and continuous duty.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
