- Body Dia.: 9.5 in
- Bolt Circle Dia.: 7 1/4 in
- CC Number: CC003A
- Conduit Box Location: Exterior
- Conduit Box Position: F1, F2
- Duty Cycle: Continuous
Specifications
| Part Number | 213TTDBD6032 |
| Brand | Marathon |
| Item | Close-Coupled Pump Motor |
| Body Dia. | 9.5 in |
| Bolt Circle Dia. | 7 1/4 in |
| CC Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Frame | 213JM |
| Hz | 60 Hz |
| Full Load Amps | 19.8/9.9 |
| Height | 11 in |
| HP | 7 1/2 |
| Ins. Class | F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque |
| Constant Torque | 2:1 |
| Length Less Shaft | 15 in |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor | Bearings Ball |
| Motor Design | 3-Phase |
Description

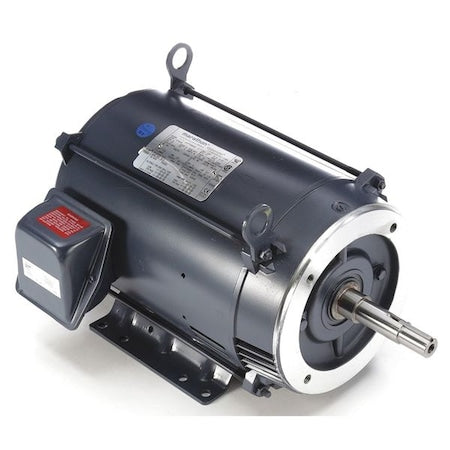

The Marathon 213TTDBD6032 is a close-coupled pump motor with a 213JM frame and a 7 1/2 HP, 3-phase design. It operates at 60 Hz with full load amps of 19.8/9.9, has a continuous duty cycle, and is inverter rated for 10:1 variable torque and 2:1 constant torque. The motor features ball bearings, Class F insulation, a 9.5 in body diameter, and a maximum ambient temperature of 40 degrees C.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
