- Three: Phase
- Motor Design: Three-Phase
- HP: 1 hp
- Nameplate RPM: 1,750 RPM
- No. of Speeds: 1
- Voltage: 230/460V AC
Specifications
| Part Number | 1TRZ6 |
| Brand | DAYTON |
| Item | Washdown Motor |
| Three | Phase |
| Motor Design | Three-Phase |
| HP | 1 hp |
| Nameplate RPM | 1,750 RPM |
| No. of Speeds | 1 |
| Voltage | 230/460V AC |
| Full Load Amps | 3.0/1.5 A |
| Frame | 56C |
| Hz | 60 Hz |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Continuous |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design Totally Enclosed | Non-Ventilated |
| Motor Mounting Type | C-Face, Rigid Base |
| Motor Mounting Position | Horizontal |
| UPC | 190735147696 |
Description

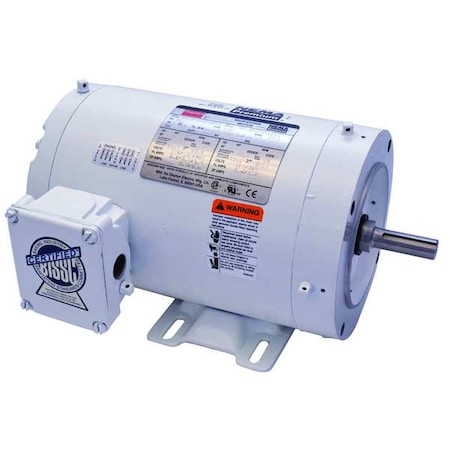

The DAYTON 1TRZ6 is a three-phase washdown motor rated at 1 hp with a nameplate speed of 1,750 RPM. It operates on 230/460V AC at 60 Hz, draws 3.0/1.5 full load amps, and has a 56C frame with C-face and rigid base mounting. The motor features a totally enclosed non-ventilated design, Class F insulation, a 1.15 service factor, and a continuous duty cycle.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
