- Voltage: 24VAC
- Display Size: 4.81 sq in
- Digit Size: Easy Read
- Temporary Temperature Hold: Yes
- Temperature Limiting: Yes
- Temporary Program Override: Yes
Specifications
| Part Number | 1F85U-42PR |
| Brand | Emerson Climate Technologies |
| Voltage | 24VAC |
| Stages Heat | 4 |
| Mounting Type | Horizontal |
| Mounting Location | Wall |
| Color | Gray |
| Height | 3 3/4" |
| Width | 6" |
| Depth | 1 1/8 in |
| Display Size | 4.81 sq in |
| Overall Depth | 1 1/8 in |
| Digit Size | Easy Read |
| Overall Width | 6 in |
| Overall Height | 3 3/4 in |
| Item | 80 Series Thermostats |
| Control Range | 45 Degrees to 99 Degrees F |
| System Switching | Auto-Heat-Cool-Off |
| Stages Cool | 2 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery |
| 750mV Compatible | Yes |
| Programs per Week | 7 |
| Agency Compliance | Energy Aware |
| WiFi Capability | No |
| Dehumidification Control | Yes |
| For Use With | Heating and Cooling |
| Programmable Fan | No |
| Display Color | Gray |
| Display Type | Digital |
| Filter Indicator | Yes |
| Green Certification or Other Recognition | Energy Aware |
| Fan Switching | Auto-on |
| Battery Backup | Yes |
| Humidification Control | No |
| Standards | Energy Aware Certified, NEMA |
| Temporary Temperature Hold | Yes |
| Low Battery Indicator | Yes |
| Temperature Limiting | Yes |
| Key Pad Lockout | Yes |
| Temporary Program Override | Yes |
| Batteries Included | Yes |
| Features | High Contrast Display |
| Terminal Designations | C, G, L, O/B/6, RC, RH, W/E, W2, Y, Y2 |
| Automatic Changeover | Yes |
| Temp. Settings per Day | 4 |
| Includes | Mounting Hardware |
| Control Type | Push Button |
| Stages | 2H/2C Conventional, 4H/2C Heat Pump |
| System/Fan Settings | Auto-Cool-Heat-Off/Auto-On |
| Temperature Control Range | 45 Degrees to 99 Degrees F |
| Temperature settings per day | 0, 2, 4 |
| Maximum Operating Temperature | 105 Degrees F |
| Electrical Connection Type | Hardwired |
| Battery Type | AA Battery |
| Minimum Control Temperature | 45 Degrees F |
| Maximum Operating Humidity | 90 % |
| Temperature Sensitivity | +/-1 Degrees F |
| Maximum Control Temperature | 99 Degrees F |
| Mounting Direction/Shape | Horizontal |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit/Celsius |
| Operating Humidity Range | 0% to 90% RH |
| Contact Rating | 20 to 30V AC |
| Smart Connectivity | No Connectivity |
| Includes Positive Off | Yes |
| Minimum Operating Temperature | 32 Degrees F |
| Operating Temperature Range | 32 Degrees to 105 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Shape | Rectangle |
| Filter Change Reminder | Yes |
| Fan Settings | Auto-On |
| Differential Type | Adjustable |
| Application | Heat and Cool |
| Number of Heating Stages - Conventional System | 2 |
| Sensor Location | Remote |
| Backlit Type | Touch Activated or Continuous with Common Wire |
| Thermostat Type | Low Voltage |
| Number of Cooling Stages - Heat Pump System | 2 |
| Mounting Direction | Horizontal |
| Differential Cool | 0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F |
| Minimum Operating Humidity | 0 % |
| Backlit Screen Color | Gray |
| Requires C-Wire | Yes |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt |
| Changeover Type | Automatic |
| Number of Cooling Stages - Conventional System | 2 |
| Number of Heating Stages - Heat Pump System | 4 |
| Millivolt Compatible | Yes |
| Number of Zones | 1 |
| Backlit Screen | Yes |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump |
| Programming Capability | 5-1-1, 5-2, 7 Day |
| Temperature Differential | 0.6 Degrees F, 1.2 Degrees F |
| Includes Batteries | Yes |
| System Settings | Auto-Cool-Heat-Off |
| Housing Color | Gray |
| Differential Heat | 0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F |
Description

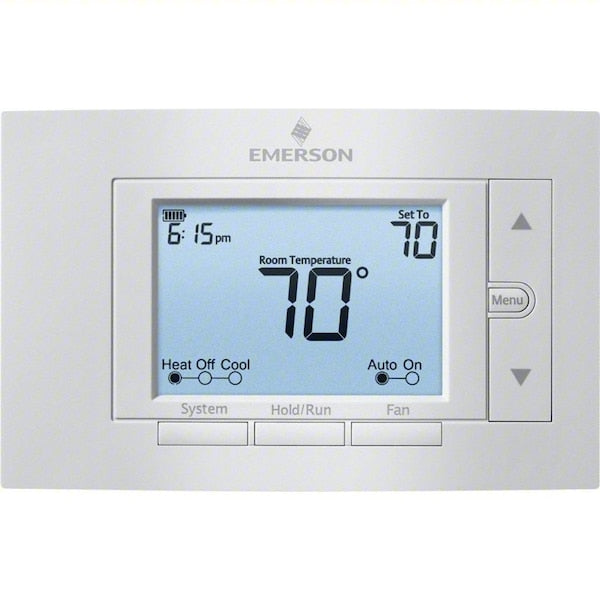

The Emerson Climate Technologies 1F85U-42PR is an 80 Series thermostat. This thermostat controls heating and cooling systems by sensing temperature and activating the appropriate equipment. It operates on 24VAC and is compatible with both dual transformer and 750mV systems.
