- Motor Design: 3-Phase
- Phase: Three
- HP: 1
- No. of Speeds: 1
- Voltage: 208-230/460V AC
- Motor Shaft Rotation: CCW
Specifications
| Part Number | 1818V |
| Brand | U.S. Motors |
| Item | Motor,1HP,1140RPM,208-230/460V,60HZ,56Y |
| Motor Design | 3-Phase |
| Phase | Three |
| HP | 1 |
| No. of Speeds | 1 |
| Voltage | 208-230/460V AC |
| Motor Shaft Rotation | CCW |
| Frame | 56 |
| Motor Enclosure Design Open | Dripproof |
| Band Motor Mounting | Type |
| Motor Thermal Protection | T-Stat |
| Max. Ambient Temp. | 70 Degrees C |
| Nameplate RPM | 1,140 |
| Hz | 60 |
| Full Load Amps | 4.3-4.3/2.1 A |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Features | HVAC/R |
| UPC | 786382078119 |
Description

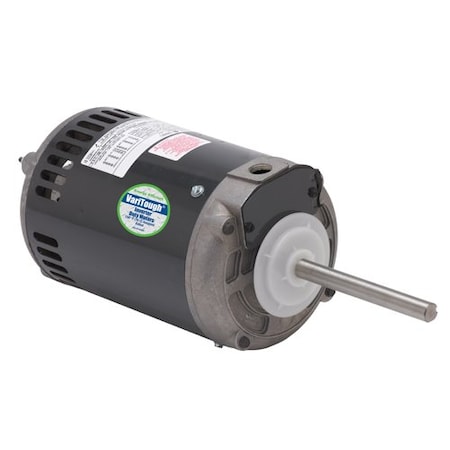

The U.S. Motors 1818V is a 1 hp condenser fan motor operating at 1,140 rpm. This three-phase unit runs on 208-230/460V AC at 60 Hz and has a 56 frame with an open dripproof enclosure. It features counterclockwise shaft rotation, thermal protection, a maximum ambient temperature of 70 degrees C, and a service factor of 1.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
