- For Conductor Material: Aluminum, Copper
- Line: Connections/Pole 1
- Line Side Stud Size: Not Applicable
- For Line Copper Wire Size - Minimum: 2 AWG
- For Line Copper Wire Size - Maximum: 600 kcmil
- Load Connections/Pole: 12
Specifications
| Part Number | 16375-3 |
| Brand | Eaton Bussmann |
| Item | Power Distribution Block |
| For Conductor Material | Aluminum, Copper |
| Line | Connections/Pole 1 |
| Line Side Stud Size | Not Applicable |
| For Line Copper Wire Size - Minimum | 2 AWG |
| For Line Copper Wire Size - Maximum | 600 kcmil |
| Load Connections/Pole | 12 |
| Load Side Stud Size | Not Applicable |
| For Load Copper Wire Size - Minimum | 14 AWG |
| For Load Copper Wire Size - Maximum | 4 AWG |
| Maximum Current - Copper Conductor | 420 A |
| Maximum Voltage | 600 V |
| Mounting Type | Surface |
| Number of Poles | 3 |
| Overall Depth | 3.75 in |
| UPC | 051712271516 |
Description

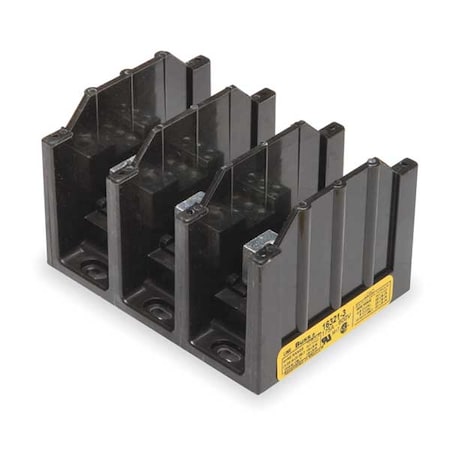

The Eaton Bussmann 16375-3 is an open, three-pole power distribution block for use with aluminum or copper conductors. It has one line connection per pole and twelve load connections per pole, accepting copper wire from 2 AWG to 600 kcmil on the line side and 14 AWG to 4 AWG on the load side. The block is rated for a maximum current of 420 A with copper conductors and a maximum voltage of 600 V AC/DC, with a surface mounting type and an overall depth of 3.75 in.
