- Coefficient of Volume (Cv): 8.5
- Nominal Valve Size: 1 in
- Connection Type - Side: 1 Butt Weld
- Diaphragm Material: PTFE
- Seal Material: PTFE
- Maximum Pressure - Operating: 150 psi
Specifications
| Part Number | 1544010 |
| Brand | Asahi |
| Item | Manual Diaphragm Valve |
| Coefficient of Volume (Cv) | 8.5 |
| Nominal Valve Size | 1 in |
| Connection Type - Side | 1 Butt Weld |
| Diaphragm Material | PTFE |
| Seal Material | PTFE |
| Maximum Pressure - Operating | 150 psi |
| Operating Temperature - Maximum | 210 Degrees F |
| Diaphragm Valve Type | 2-Way |
| Body Material | PVDF |
| Inlet Connection Gender | Not Applicable |
| Overall Length | 7.69 in |
| Operating | Temperature - Minimum -40 Degrees F |
| ANSI Flange Class | Not Applicable |
| Number of Flange Bolt Holes | Not Applicable |
Description

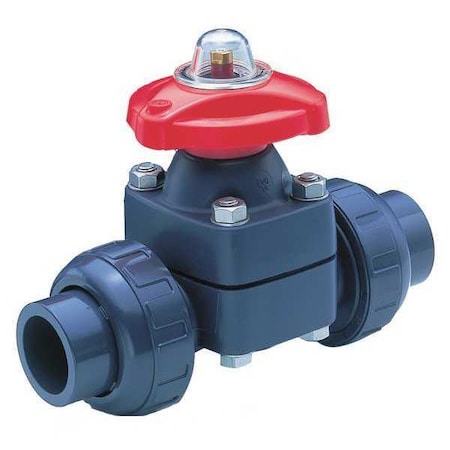

The Asahi 1544010 is a manual 2-way diaphragm valve with a 1-inch nominal size and a butt weld side connection. It has a PVDF body, PTFE diaphragm and seal, and an overall length of 7.69 inches. The valve has a coefficient of volume of 8.5, a maximum operating pressure of 150 psi, and an operating temperature range of -40 to 210 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
