- Single: Phase
- Motor Design Universal: AC/DC
- No. of Speeds: 1
- Voltage: 240V AC
- Full Load Amps: 7.2 A
- Max. Amps: 7.2 A
Specifications
| Part Number | 122178-18 |
| Brand | Ametek |
| Item | Vacuum Motor |
| Single | Phase |
| Motor Design Universal | AC/DC |
| No. of Speeds | 1 |
| Voltage | 240V AC |
| Full Load Amps | 7.2 A |
| Max. Amps | 7.2 A |
| Hz | 60 Hz |
| Motor Thermal Protection | Manual |
| Ins. Class | A |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Intermittent |
| Motor Enclosure Design | Open |
| Motor Mounting Type | Lug |
| Motor Mounting Position | All Angle |
| Max. Air Watts | 700 W |
| Vacuum Rating | 150 |
| CFM @ 2-In. Orifice | 142 cfm |
| Mounting | Bracket Material Aluminum |
| Motor | Bearings Ball |
| Features | Motor/Blower Type Bypass |
| UPC | 704550034293 |
Description

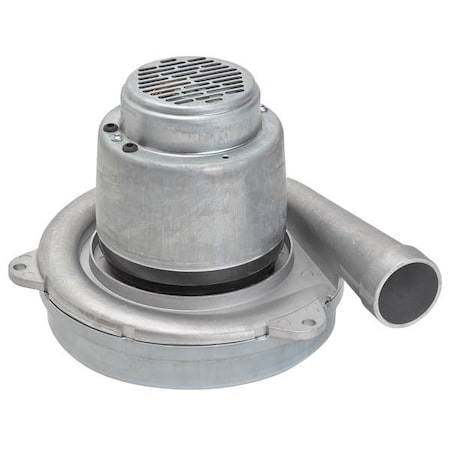

The Ametek 122178-18 is a single-phase universal AC/DC vacuum motor with one speed and two blower stages. It operates at 240V AC, 60 Hz, with a full load of 7.2 A, and has a maximum air power of 700 W. The motor features an open enclosure, aluminum bracket mounting, ball bearings, manual thermal protection, and a maximum ambient temperature of 40 degrees C.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
