- Single: Phase
- Motor Design Universal: AC/DC
- Nameplate RPM: 24,716 RPM
- No. of Speeds: 1
- Voltage: 120V AC
- Full Load Amps: 10.9 A
Specifications
| Part Number | 117560-01 |
| Brand | Ametek |
| Item | Vacuum Motor |
| Single | Phase |
| Motor Design Universal | AC/DC |
| Nameplate RPM | 24,716 RPM |
| No. of Speeds | 1 |
| Voltage | 120V AC |
| Full Load Amps | 10.9 A |
| Max. Amps | 7.5 A |
| Hz | 60/50 Hz |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Intermittent |
| Motor Enclosure Design | Open |
| Motor Mounting Type | Lug |
| Motor Mounting Position | All Angle |
| Max. Air Watts | 386 W |
| Vacuum Rating | 107.8 |
| CFM @ 2-In. Orifice | 97.8 cfm |
| Mounting | Bracket Material Thermoset |
| Features | Motor/Blower Type Bypass |
| UPC | 663001036760 |
Description

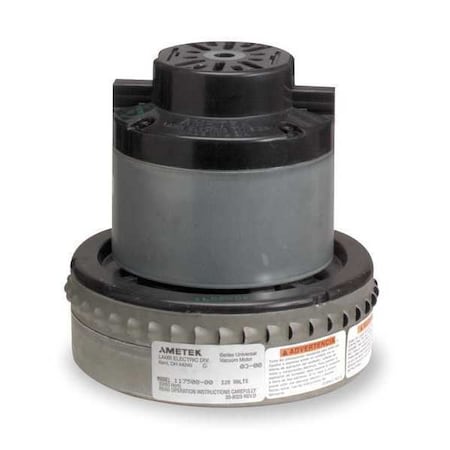

The Ametek 117560-01 is a peripheral, two-stage, single-speed vacuum motor/blower with a universal AC/DC motor design. It operates at 120V AC, 60/50 Hz, with a nameplate speed of 24,716 RPM and full load amps of 10.9 A. This open, lug-mounted unit has a maximum air watts rating of 386 W and a vacuum rating of 107.8.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
