- Single: Phase
- Motor Design Universal: AC/DC
- Nameplate RPM: 19,500 RPM
- No. of Speeds: 1
- Voltage: 120V AC
- Full Load Amps: 14.3 A
Specifications
| Part Number | 116118-00 |
| Brand | Ametek |
| Item | Vacuum Motor |
| Single | Phase |
| Motor Design Universal | AC/DC |
| Nameplate RPM | 19,500 RPM |
| No. of Speeds | 1 |
| Voltage | 120V AC |
| Full Load Amps | 14.3 A |
| Max. Amps | 10 A |
| Hz | 60/50 Hz |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Intermittent |
| Motor Enclosure Design | Open |
| Motor Mounting Type | Lug |
| Motor Mounting Position | All Angle |
| Max. Air Watts | 447 W |
| Vacuum Rating | 131.4 |
| CFM @ 2-In. Orifice | 105 cfm |
| Mounting | Bracket Material Aluminum |
| Features | Motor/Blower Type Bypass |
Description

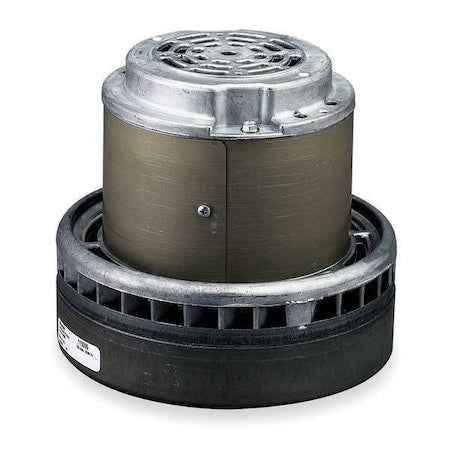

The Ametek 116118-00 is a single-phase universal AC/DC vacuum motor with a peripheral, three-stage blower design and one speed. It operates at 19,500 RPM on 120V AC, drawing 14.3 full load amps at 60/50 Hz. This open, lug-mounted motor has a maximum air watt rating of 447 W, a vacuum rating of 131.4, and airflow of 105 cfm at a 2-inch orifice.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
