- Single: Phase
- Motor Design Universal: AC/DC
- Nameplate RPM: 21,422 RPM
- No. of Speeds: 1
- Voltage: 120V AC
- Full Load Amps: 13.9 A
Specifications
| Part Number | 115330 |
| Brand | Ametek |
| Item | Vacuum Motor |
| Single | Phase |
| Motor Design Universal | AC/DC |
| Nameplate RPM | 21,422 RPM |
| No. of Speeds | 1 |
| Voltage | 120V AC |
| Full Load Amps | 13.9 A |
| Max. Amps | 8.8 A |
| Hz | 60/50 Hz |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Intermittent |
| Motor Enclosure Design Open | Drip Proof |
| Motor Mounting Type | Lug |
| Motor Mounting Position | All Angle |
| Max. Air Watts | 399 W |
| Vacuum Rating | 113.4 |
| CFM @ 2-In. Orifice | 115.7 cfm |
| Features | Motor/Blower Type Bypass |
Description

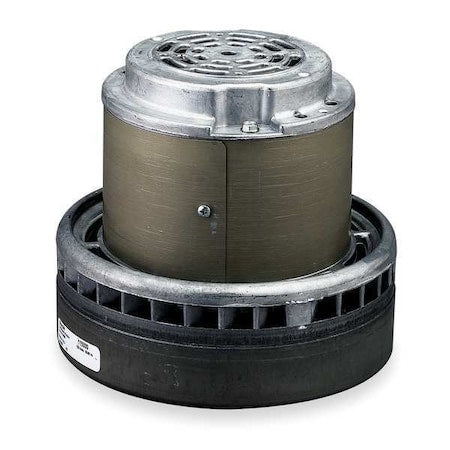

The Ametek 115330 is a single-phase universal AC/DC vacuum motor with two blower stages and metal mounting brackets. It operates at 120V AC, 60/50 Hz, with a nameplate speed of 21,422 RPM and a full load rating of 13.9 A. This open drip-proof motor has a 7.2 in body diameter, lug mounting, a maximum air watt rating of 399 W, and a vacuum rating of 113.4.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
