- Single: Phase
- Motor Design Universal: AC/DC
- Nameplate RPM: 14,300 RPM
- No. of Speeds: 1
- Voltage: 240V AC
- Full Load Amps: 5.0 A
Specifications
| Part Number | 114789 |
| Brand | Ametek |
| Item | Vacuum Motor |
| Single | Phase |
| Motor Design Universal | AC/DC |
| Nameplate RPM | 14,300 RPM |
| No. of Speeds | 1 |
| Voltage | 240V AC |
| Full Load Amps | 5.0 A |
| Max. Amps | 3.2 A |
| Hz | 60/50 Hz |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Intermittent |
| Motor Enclosure Design | Open |
| Motor Mounting Type | Lug |
| Motor Mounting Position | All Angle |
| Max. Air Watts | 354 W |
| Vacuum Rating | 84.5 |
| CFM @ 2-In. Orifice | 122 cfm |
| Mounting | Bracket Material Aluminum |
| Features | Motor/Blower Type Bypass |
Description

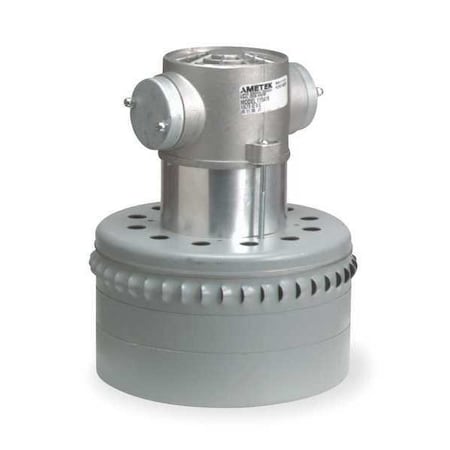

The Ametek 114789 is a peripheral vacuum motor/blower with a 3-stage, single-speed design. This universal AC/DC motor operates at 240V AC and 60/50 Hz, with a nameplate speed of 14,300 RPM and a full load rating of 5.0 A. It provides a maximum of 354 air watts, a vacuum rating of 84.5, and airflow of 122 cfm at a 2-inch orifice. The unit features an open enclosure, lug mounting, and a bypass motor/blower type.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
