- Bearing Protection: Sealed
- Body Dia.: 6.5 in
- Bolt Circle Dia.: 5 7/8 in
- CC Number: Not Applicable
- Conduit Box Location: Exterior
- Conduit Box Position: F1
Specifications
| Part Number | 113640.00 |
| Brand | Leeson |
| Item | Pool and Spa Pump Motor |
| Bearing Protection | Sealed |
| Body Dia. | 6.5 in |
| Bolt Circle Dia. | 5 7/8 in |
| CC Number | Not Applicable |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Diaphragm Type | Not Applicable |
| Duty Cycle | Continuous |
| Finish | Enamel |
| Frame | 56J |
| Hz | 60 Hz |
| Full Load Amps | 17/8.5 A |
| Height | 8 11/16 in |
| HP | 1 1/2 |
| Includes | Not Applicable |
| Ins. Class | F |
| Inverter Rated | Not Inverter Rated |
| Lead Length | 6 in |
| Length Less Shaft | 10 7/16 in |
| Max. Ambient Temp. | 104 Degrees F |
| UPC | 691720012307 |
Description

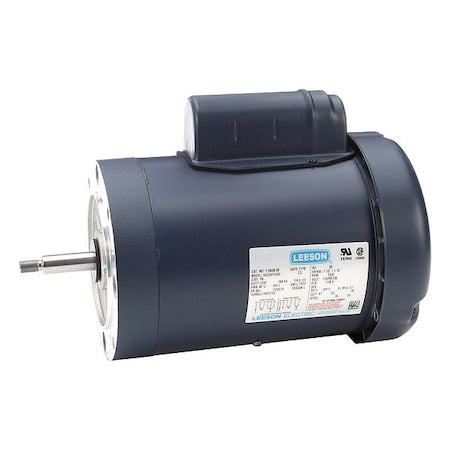

Leeson 113640.00 is a pool and spa pump motor with a 56J frame and a 1 1/2 HP rating. It operates at 60 Hz with full load amps of 17/8.5 A and has a continuous duty cycle. The motor features sealed bearing protection, an enamel finish, Class F insulation, and a maximum ambient temperature of 104 degrees F.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
