- Movement Type: Swivel
- Material: Alloy Steel
- Mount Type: Screw-On
- Working Load Limit: 7,000 lb
- Thread Size: 3/4 In.-10
- Operation: Lifting
Specifications
| Part Number | 1016942 |
| Brand | Crosby |
| Item | Hoist Ring |
| Movement Type | Swivel |
| Material | Alloy Steel |
| Mount Type | Screw-On |
| Working Load Limit | 7,000 lb |
| Thread Size | 3/4 In.-10 |
| Operation | Lifting |
| Pivot Angle | 180 Degrees |
| Swivel Angle | 360 Degrees |
| Usable Thread Length | 7/8 in |
| Bail Inside Length | 3 in |
| Bail Inside Width | 3 in |
| Bail Thickness | 15/16 in |
| Overall Length | 4 7/8 in |
| Overall Width | 4 7/8 in |
| Hardware Included | Removable Bolt |
| Minimum Installation Torque | 100 ft-lb |
| Finish | Black Oxide |
| Color | Gold |
| Standards | ASTM A574 |
Description

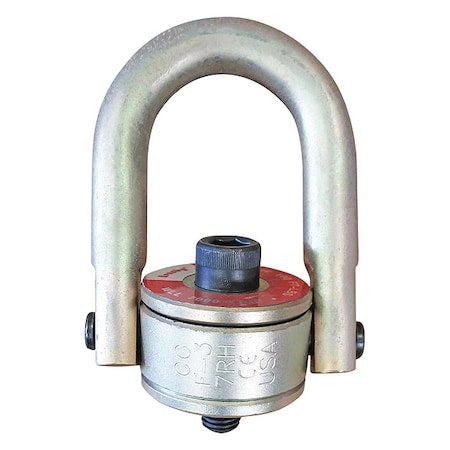

The Crosby 1016942 is an alloy steel hoist ring with a screw-on mount and a swivel movement type. It has a working load limit of 7,000 lb, a 3/4 In.-10 thread size, and a 7/8 in usable thread length. The bail measures 3 in in both inside length and width, with a 15/16 in thickness, and the overall dimensions are 4 7/8 in by 4 7/8 in. It features a black oxide finish, a gold color, a 180-degree pivot angle, a 360-degree swivel angle, and includes a removable bolt.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
