- Actuation Mechanism: Electrical
- Air Consumption: 3.48 cfm
- Control Valve: Normally Closed
- Electrical Connection Type: 5-Pole M12 Male
- Maximum Flow Rate: 2.31 cfm
- Maximum Operating Temperature: 50 Degrees C
Specifications
| Part Number | 10.02.02.04125 |
| Brand | Schmalz |
| Item | Item Compact Ejector |
| Actuation Mechanism | Electrical |
| Air Consumption | 3.48 cfm |
| Control Valve | Normally Closed |
| Electrical Connection Type | 5-Pole M12 Male |
| Maximum Flow Rate | 2.31 cfm |
| Maximum Operating Temperature | 50 Degrees C |
| Maximum | Supply Pressure 6 bar |
| Maximum Vacuum Pressure | 6 bar |
| Minimum Operating Temperature | 0 Degrees C |
| Minimum | Supply Pressure 3 bar |
| Minimum | Vacuum Pressure 3 bar |
| Overall Depth | 18.6 mm |
| Overall Height | 99 mm |
| Overall Length | 105 mm |
| Pressure Port Gender | Female |
Description

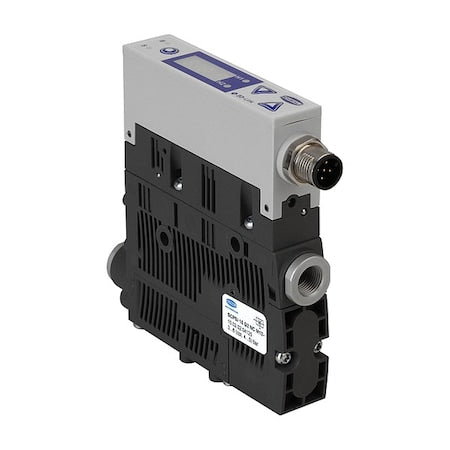

The Schmalz 10.02.02.04125 is a compact ejector with electrical actuation and a normally closed control valve. It has an air consumption of 3.48 cfm, a maximum flow rate of 2.31 cfm, and a supply pressure range of 3 to 6 bar. The unit measures 105 mm in length, 99 mm in height, and 18.6 mm in depth, with a 5-pole M12 male electrical connection and a female pressure port.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
