- Single: Phase
- Motor Design: Capacitor-Start
- HP: 1/3 hp
- Nameplate RPM: 1,725 RPM
- No. of Speeds: 1
- Voltage: 115/208-230V AC
Specifications
| Part Number | 056C17G5320 |
| Brand | Leeson |
| Item | Hazardous Location Motor |
| Single | Phase |
| Motor Design | Capacitor-Start |
| HP | 1/3 hp |
| Nameplate RPM | 1,725 RPM |
| No. of Speeds | 1 |
| Voltage | 115/208-230V AC |
| Full Load Amps | 6.6/3.1-3.3 A |
| Frame | 56C |
| Hz | 60 Hz |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Hazardous Location Class Class | I |
| Class | II |
| Temp. Code | T3B |
| Motor Enclosure Design Totally Enclosed Fan | Cooled |
| Duty Cycle | Continuous |
| Features | Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V |
Description

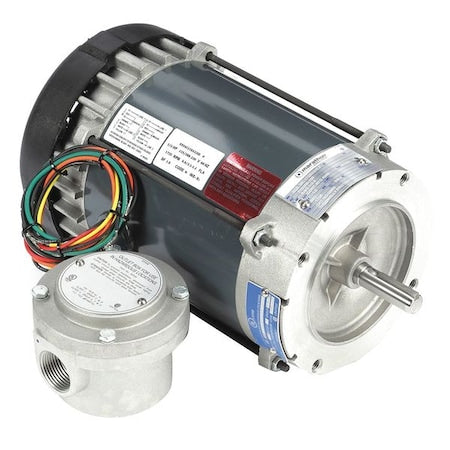

The Leeson 056C17G5320 is a single-phase hazardous location motor with a capacitor-start design and a 56C frame. It provides 1/3 hp at 1,725 RPM and operates on 115/208-230V AC. This totally enclosed fan-cooled motor has a continuous duty cycle, Class B insulation, automatic thermal protection, and a maximum ambient temperature of 40 degrees C.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
