- Three: Phase
- Motor Design: Three-Phase
- HP: 1 1/2 hp
- Nameplate RPM: 3,480 RPM
- No. of Speeds: 1
- Voltage: 460V AC
Specifications
| Part Number | 00156ST3QIE143T-W22 |
| Brand | Weg |
| Item | Severe Duty Motor |
| Three | Phase |
| Motor Design | Three-Phase |
| HP | 1 1/2 hp |
| Nameplate RPM | 3,480 RPM |
| No. of Speeds | 1 |
| Voltage | 460V AC |
| Full Load Amps | 2.0 A |
| Frame | 143T |
| Hz | 60 Hz |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Enclosure Design Totally Enclosed Fan | Cooled |
| Duty Cycle | Continuous |
| Motor Mounting Type | Rigid Base |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Features | Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V |
Description

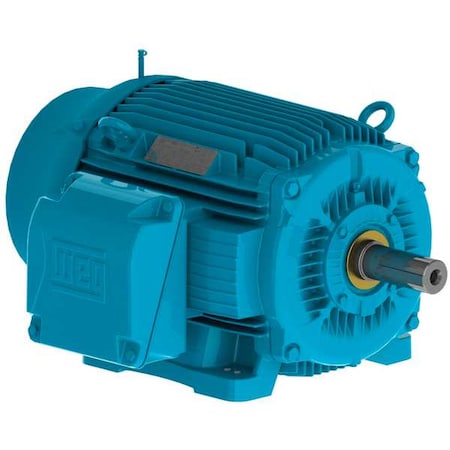

The Weg 00156ST3QIE143T-W22 is a three-phase severe duty motor with a 143T frame and rigid base mounting. It provides 1 1/2 hp at 3,480 RPM on 460V AC, 60 Hz, with a full load draw of 2.0 A and a service factor of 1.25. This totally enclosed fan-cooled motor has Class F insulation, NEMA Design B, continuous duty, and CW/CCW shaft rotation.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
