- Connection Orientation: Straight
- Current Rating: 1,135 A
- Gender: Male
- Housing Color: Brown
- Housing Material Thermoplastic: Elastomer
- Maximum Wire Size: 777 kcmil
Specifications
| Part Number | 49MR1-CH |
| Brand | Leviton |
| Item | Single Pole Receptacle |
| Connection Orientation | Straight |
| Current Rating | 1,135 A |
| Gender | Male |
| Housing Color | Brown |
| Housing Material Thermoplastic | Elastomer |
| Maximum Wire Size | 777 kcmil |
| Minimum Wire Size | 313 kcmil |
| Phase | Single |
| Voltage Rating | 1000V AC |
| DC | 1000V |
| Contact Material | Silver-Plated Copper |
| End Type | Clevis Pin |
| Flange Shape | Square |
| NEMA Enclosure Rating | 3R |
| Standards UL | Recognized Component |
| Terminal Connection Type | One-Hole Bus Bar |
| Mounting Location | Surface |
| UPC | 078477365489 |
Description

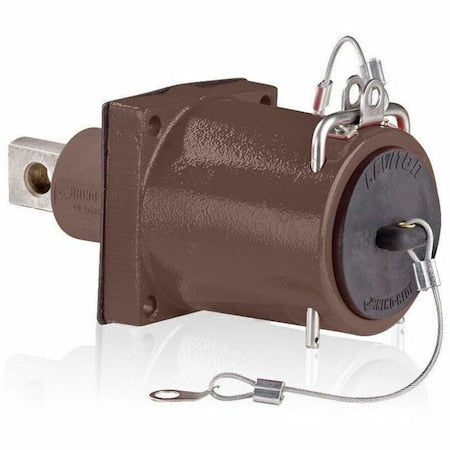

Leviton 49MR1-CH is a male single pole receptacle with a straight connection orientation. It is rated for 1,135 A and 1000V AC or 1000V DC, with a brown thermoplastic elastomer housing and silver-plated copper contacts. The receptacle accepts wire sizes from 313 kcmil to 777 kcmil, has a one-hole bus bar terminal connection, a square flange, clevis pin end type, and a NEMA 3R enclosure rating for surface mounting.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
