- Wheel Type: Backward-Curved
- Drive Type: Belt Drive
- Includes Drive Package: No
- Assembly: Unassembled
- Wheel Diameter: 13 1/2 in
- Minimum Airflow: 695 cfm
Specifications
| Part Number | 508223 |
| Brand | DAYTON |
| Item | Plenum Fan |
| Wheel Type | Backward-Curved |
| Drive Type | Belt Drive |
| Includes Drive Package | No |
| Assembly | Unassembled |
| Wheel Diameter | 13 1/2 in |
| Minimum Airflow | 695 cfm |
| Maximum Airflow | 2,233 cfm |
| Maximum Static Pressure | 1 1/2 in wc |
| Maximum Inlet Air Temperature | 150 Degrees F |
| Shaft Diameter | 1 in |
| Bearing Type | Ball |
| Wheel Material | Aluminum |
| Wheel Width | 13.5 in |
| Frame Material | Galvanized |
| Inlet Diameter | 8 1/2 in |
| Rough Opening Height | 18 in |
| Rough Opening Width | 18 in |
| Maximum Fan Speed | 1,940 RPM |
| UPC | 190735334102 |
Description

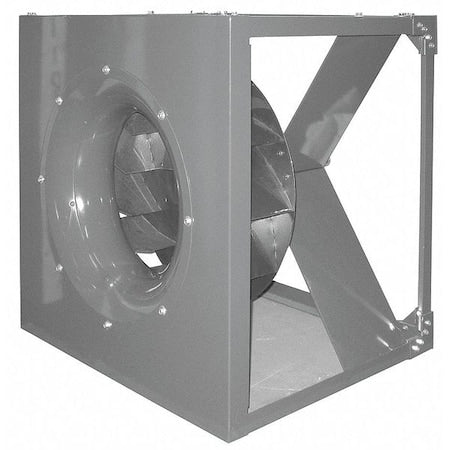

DAYTON plenum fan 508223 is a belt-drive unit with a backward-curved aluminum wheel measuring 13 1/2 in diameter and 13.5 in wide. It provides an airflow range of 695 to 2,233 cfm, a maximum static pressure of 1 1/2 in wc, and a maximum fan speed of 1,940 RPM. The galvanized frame has an 8 1/2 in inlet diameter and 18 in rough opening height and width.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
